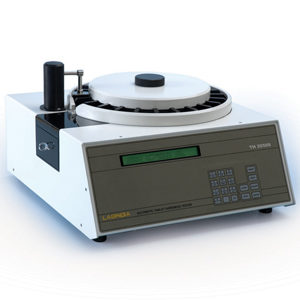

Advance Micro – Controller based user- friendly state-of the –art product design with alphanumeric splash waterproof polyester soft keys for keyboard. User interactive software in dialogue mode for ease of operation with protection against invalid entries.
Single / 12 / 24 station automatic measurement of tablet parameters – Diameter/ Length & Hardness.
Non-Volatile memory storage of 99 methods with parameters with Alphanumeric entries of sample name & identification number for authentication.
Automatic run can be performed continuously up to 1-99 tablets. RUN can be re-started on power failure or on System Reset with last run parameters.
Linear Displacement 0.8mm/sec with fast advance and return movement of breaking arm saves runtime
Daily Auto Incremented Run Number and Factory entered CUSTOMER NAME with instrument Serial Number on report makes system foolproof and GLP complaint.
Two Tier- a) ADMIN, and b) USER password protection for method editing and Validation. 25 Users can be set with Name and password. Built- in Real Time Clock (RTC) for date and time display and on printout.
Process Stage and Compression Press no. entry and Percentage Limit for detected values of Hardness, Length & Thickness with Star mark for out of limit values.
Validation / Calibration protocol with verification for hardness – 3 point Load Cell calibration with standard weights and Diameter / Length Calibration with standard gauges.
Quick run for Thickness, Length & hardness or all parameter measurement in sequence up to 25 sample tablets with GLP information.
Error indication on display helps user to trace the problem Printer Compatibility for Deskjet, inkjet & Dot-matrix printer Ethernet connectivity by Re01 Module and EDC80 Data capture Software ( Optional)
