Product Details:
| Minimum Order Quantity | 1 Piece |
| Temperature Range | 5 deg C to 60 deg C. |
| Frequency | 50 Hz |
| Capacity range | 90 - 450 L |
| Grade | 304,316 |
| Power Supply | 230 Volts AC Single phase 50 Hz |

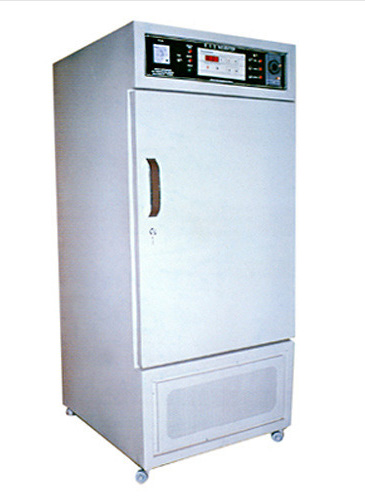

We are offering BOD Incubator to our clients.
Features:
Double Walled In Construction Inner Made of SS 304 & Exterior Made Of GI Powder Coated Shade.
The High Grade Compressed Glass Wool/PUFF Insulation Provided In Between The Wall To Minimize The Heat Loss.
The Temp. Is Being Controller By Microprocessor Based PID Temp. Controller with Dual Digital Indicator & Pt- 100 Sensor.
The Air Circulation Is Being Performed By Motorized Blower System Firmly Installed At The Top Of The Unit.
The Cooling Kit Includes Hermetically Sealed Compressor, Condenser, Fan Motor Etc. & Are Safely Placed At The Bottom/ Top Of Unit. The Cooling System Is CFC Free.
The Shelves Are Adjustable SS Wire mesh Shelves Provided Depending upon the Selection of Oven Size.
The Heating Is Provided ‘U’ Type SS Air Heater
A Fully length Inner Glass Door Provided For Clear Observation Of Test
A Fluorescent tube /Lamp provided for illumination for Clear visibly of test.
Temp. Range: - 40C to 600C
Temp. Accuracy: ± 0.40C to ± 10C
| CHAMBER SIZE(L x D x H) | HEATERS RATING | SHELVES | ||
|---|---|---|---|---|
| CFT | LTRS | |||
| 20”X 18” X 32” | 170 | 6 | 500 | 3 NOS. |
| 24”X 22” X 36 | 285 | 10 | 500 | 3 NOS. |
| 24”X 24” X 36” | 342 | 12 | 1000 | 3 NOS. |
| 26”X 26” X 36” | 400 | 14 | 1500 | 4 NOS. |
| 28”X 28” X 40” | 520 | 18 | 2000 | 5 NOS. |
| 36”X 36” X 40” | 850 | 30 | 2500 | 6 NOS. |
| 38”X 38” X 44” | 1040 | 36 | 3000 | 8 NOS. |
