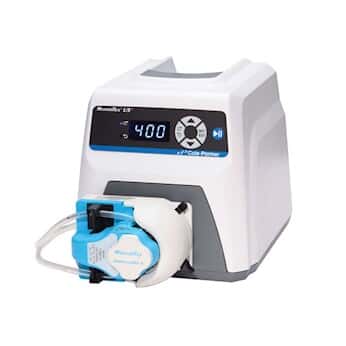

Masterflex L/S Precision Pump System, Easy-Load® 3 Pump Head; 6 to 600 rpm, 90 to 260 VAC
Reversible motor — purge tubing before or after pumping; pump fluid in either direction.
The 1/10-hp motor delivers smooth operation and long service life.
Stackable ABS plastic housing is splash-resistant.
6-ft (1.8-m) line cord — 115 VAC: U.S. standard plug; 230 VAC: IEC 320/CEE22 socket. Please specify ultimate destination country to receive correct plug/cord set.
Specifications & Description
| Control Type | Variable-Speed Digital |
| Pump Series | L/S |
| Min RPM | 6 |
| Max RPM | 600 |
| Number of Channels | 1 |
| Max Flow Rate Per Channel (mL/min) | 480 |
| Min Flow Rate Per Channel (mL/min) | 4.8 |
| Drive | 07528-10 (L/S® Precision Variable-Speed Drive) |
| Pump Head | 77800-60 (L/S® Easy-Load 3 Pump Head) |
| Tubing | 06434-16, 10-ft (C-FLEX® Ultra, L/S® 16) |
| Tubing sizes accepted | L/S® 13, 14, 16, 25, 17, 18 |
| Drive IP rating | IP 33 |
| Power (VAC) | 90 to 260 |
| Power (amps) | 1.8A at 115v; 1.2A at 230v |
| Power (Hz) | 50/60 |
| Width (in) | 8.3 |
| Height (in) | 8.5 |
| Length (in) | 13.88 |
| Width (cm) | 21.08 |
| Height (cm) | 21.59 |
| Length (cm) | 35.26 |
| Description | L/S Precision Pump System Easy-Load 3 Pump Head; 6 to 600 rpm, 90 to 260 V |
